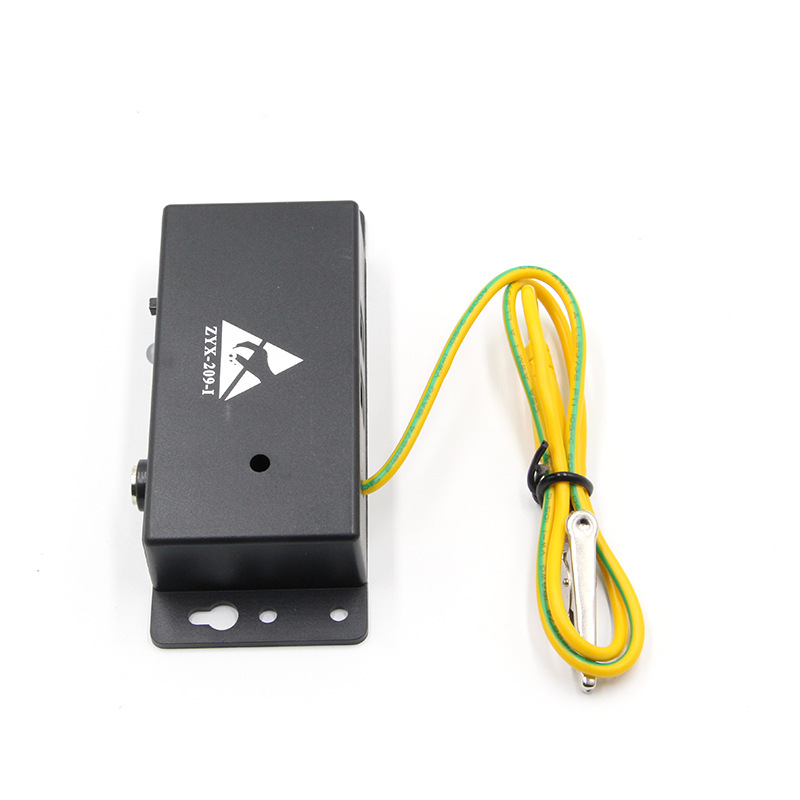

Anti-static Wrist Strap Online Monitor

Model:209-1

• Higher Safety: Able to monitor the condition of the operator's electrostatic wrist strap and the grounding in real time, and auto alarm when an abnormality occurs.

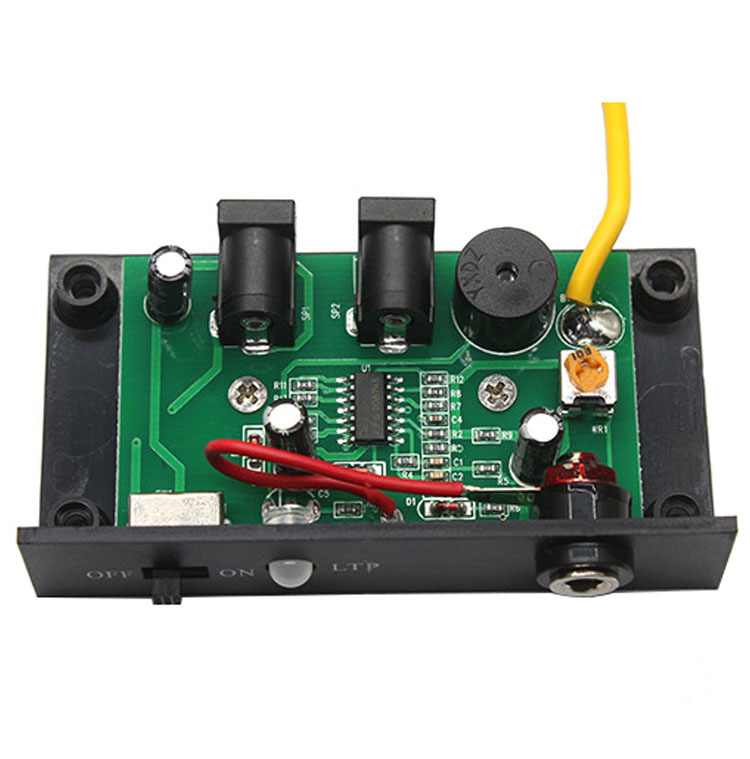

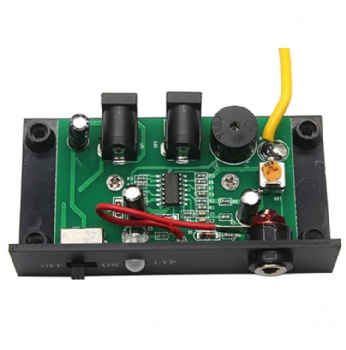

• Work: Adopting microcomputer chips, the circuit performance is stable, and the standard safety certification power supply is configured to ensure safety.

• Better Design: Fool proof design. When the electrostatic wristband fails, the power switch must be manually turned off, which guarantees high safety for operation.

• Smart Working: Good reliability and strong anti interference ability, use high electronic components and have high stability, to largely improve your working efficiency.

• Broader Range: Comes with a wide adjustment range, the highly sensitive alarm can be easily adjusted to satisfy your various working needs, very convenient as well.

Product Description

How to Use:
1. First connect the ground wire of the electrostatic alarm to a ESD ground wire.

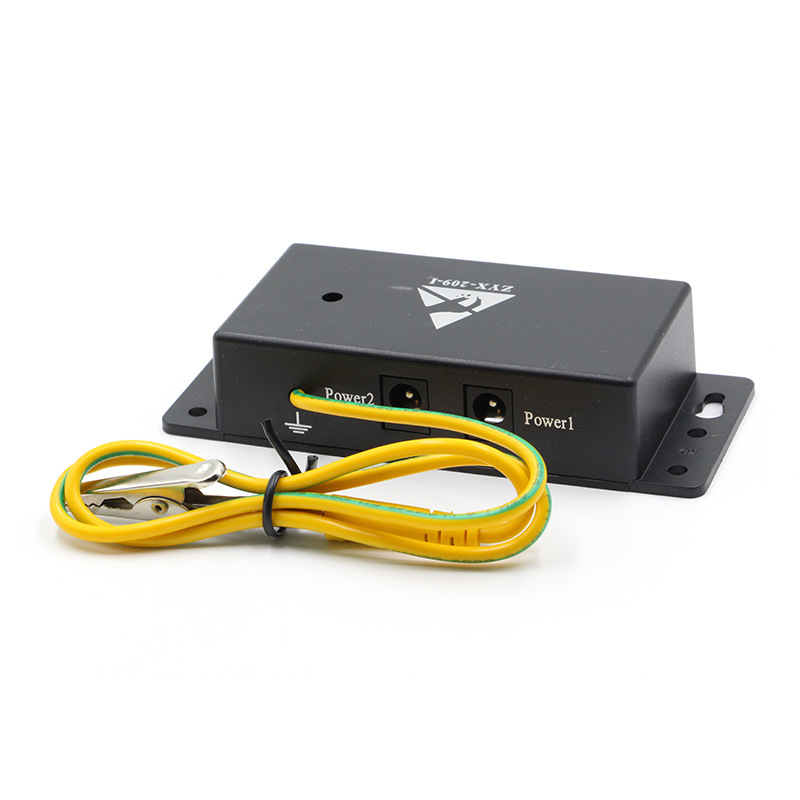

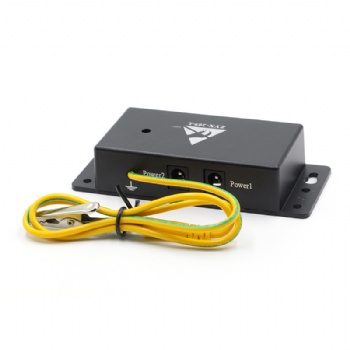

2. For safety reasons, please use the power supply certified by the safety regulations, use the standard power supply to supply power to the electrostatic alarm, and insert the DC plug into any Power interface of the alarm body.

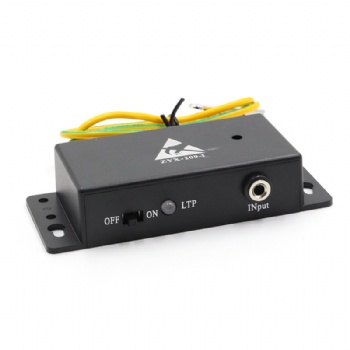

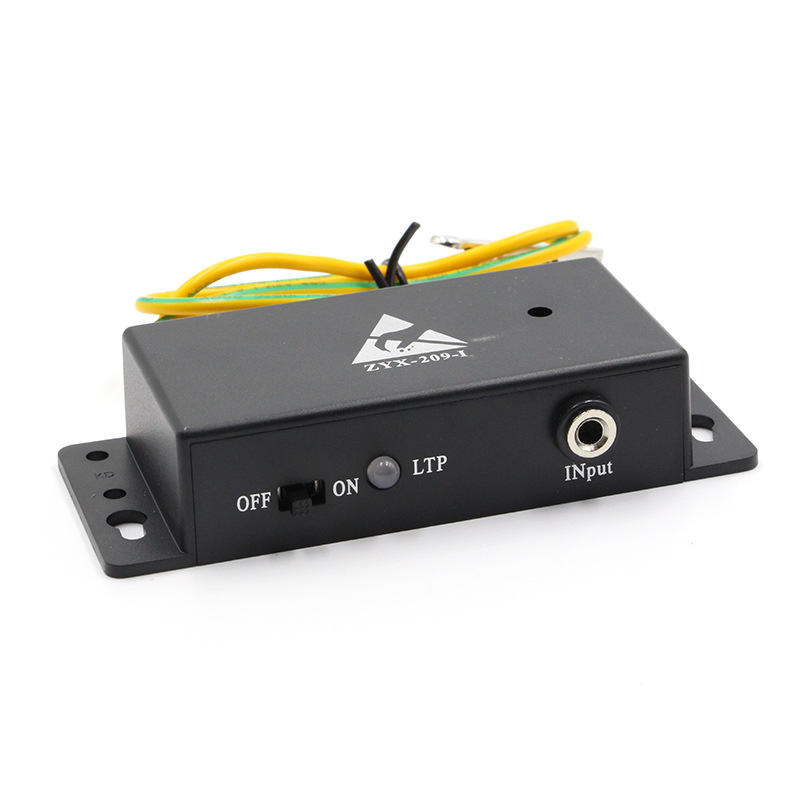

3. Insert the qualified electrostatic wristband into the INput interface of the alarm.
4. Turn the power switch from off to on, then the alarm starts to work, the green light means normal, while the red light means abnormal.
5. If the alarm light is red and the alarm sounds, and the electrostatic wrist is qualified, it indicates that the human body of the person in use is too low. At this time, the sensitivity can be adjusted by adjusting the CAL on the front of the fuselage to the green light.

Specification:
Item Type: ESD Waist Strap Monitor
Model: 209-Ⅰ
Material: Plastic, stainless steel.
Specifications: US Plug 100-240V

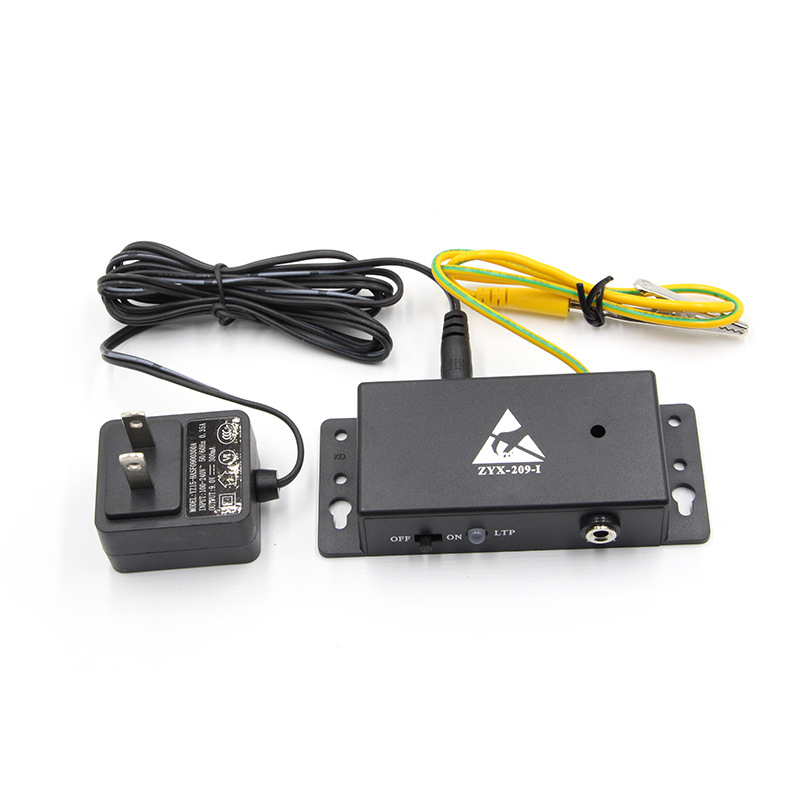

Package List:
1 x ESD Waist Strap Monitor
1 x Adapter
1 x Power Cord
1 x Ground Wire
1 x User Manual

Note:
1. The electrostatic wristband alarm is connected to a 1MΩ corded wristband.
2. Normal State: Green light on means the wristband and grounding wire are normal.
3. Alarm State: Alarm sounds and red light on means the wristband is off or loose, or the grounding is abnormal, or abnormal falling off.
