Anti-static Wrist Strap Tester

• √ ESD wrist strap tester is widely used and can be connected to all ESD-compliant wired wrist straps with a banana jack.

• √ Many wrist straps work well together, have tight contacts, low contact resistance, good connectivity, long life, and good oxidation resistance.

• √ FEITA 498 tester eliminate product damage caused by static electricity and ensure the safety of every employee.

• √ Various grounding systems can be quickly and easily inspected from any location.

Product Description

For the function of the electrostatic wrist strap, the FEITA 498 tester can quickly and easily check the following items:

✔︎ The connection between the electrostatic wrist strap and the grounding wire
✔︎ Contact impedance between the electrostatic wrist strap and the skin
✔︎ Connection with grounding tools such as electrostatic pads, mats, etc.

Specification:

⚫ Power Supply: 9V Dry Battery(not included)
⚫ Material: Plastic
⚫ Color: Black As shown

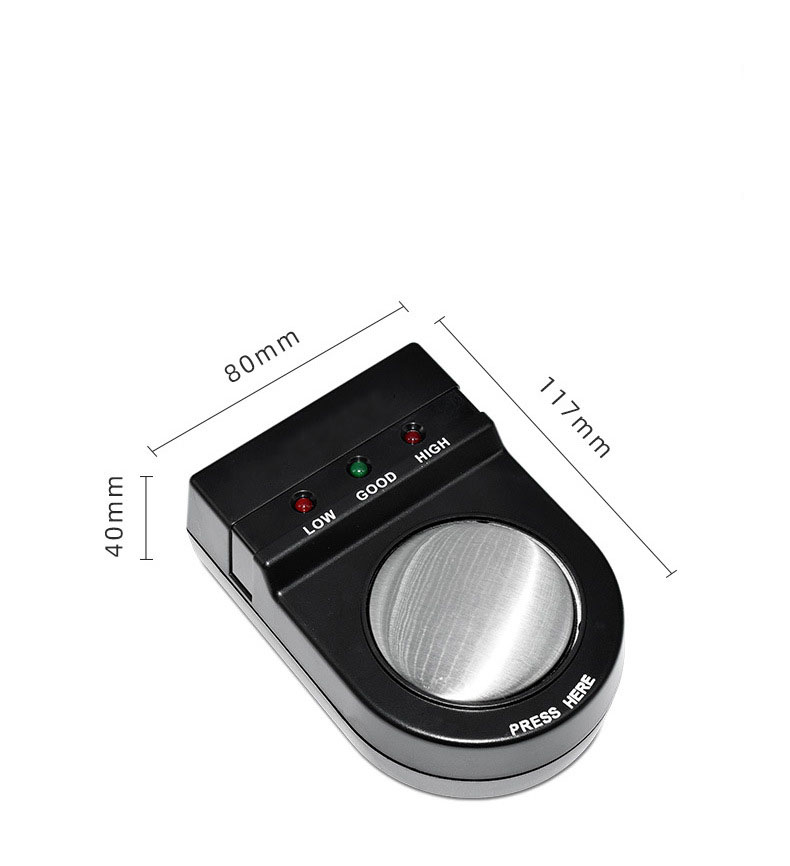

⚫ Size:12 x 8 x 4cm
⚫ Package Included: 1 x Anti-static Wrist Strap Monitor

Testing 498 Tester Status:

LED Indication ¦ Calibration Resistance ¦ Buzzer
LOW (Red) ¦ R <800K ohm ¦ OFF
GOOD (Green) ¦ 800K ohm - 9M ohm ¦ ON
HIGH (Red) ¦ R > 9M ohm ¦ OFF

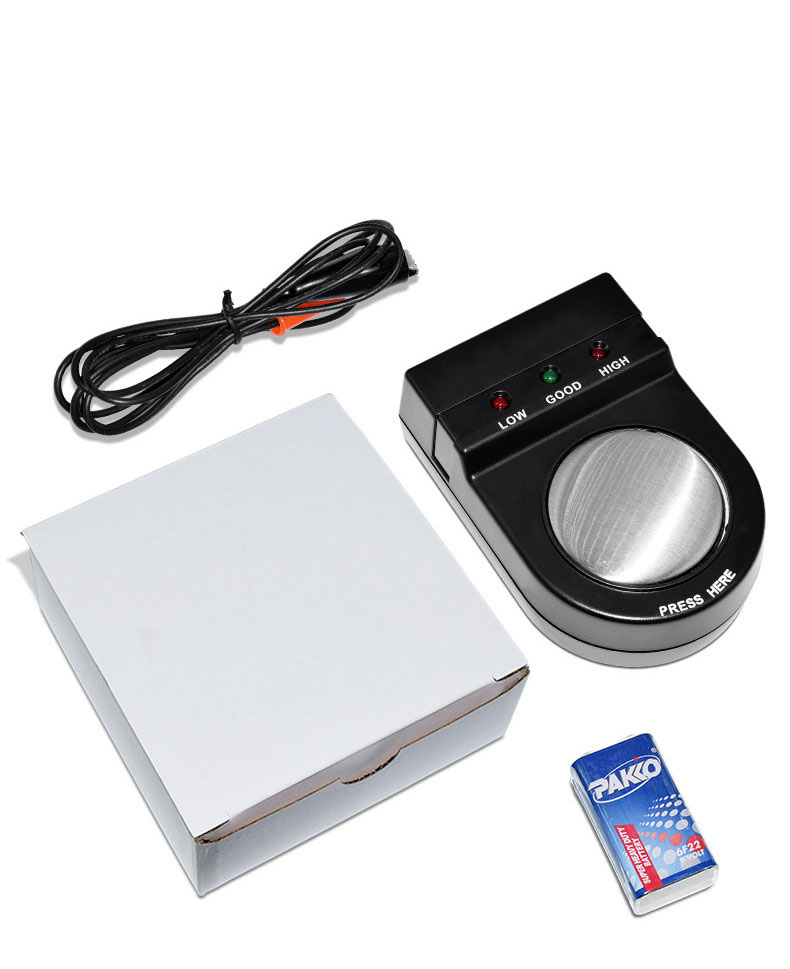

Packing list:

• ESD wristband tester 1pc; 9v battery 1pc; ground cord 1pc;
