ESD Wrist Strap Online Monitor

Product details

• Package Dimensions ‏ : ‎ 6.06 x 5.87 x 2.05 inches;

• Item model number ‏ : ‎ 518-2

• Product Description

• Feature

  FEITA electrostatic wristband alarm can continuously monitor and control the antistatic wristband in real time and monitor the whole grounding system in real time.
  Can to ensure the normal use of the grounding system in the anti-static work area.
  This product ensures the operator's ESD status is obtained accurate monitoring.

  Specification

  Output current: DC6V 0.3A
  Power consumption: 1.8W
  Accuracy: 1.068MΩ±5%
  Product Size: 70 * 60 * 29mm (518-1); 110 * 60 * 29mm (518-2)

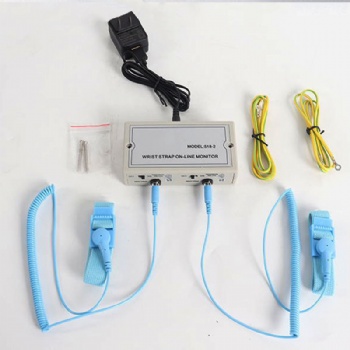

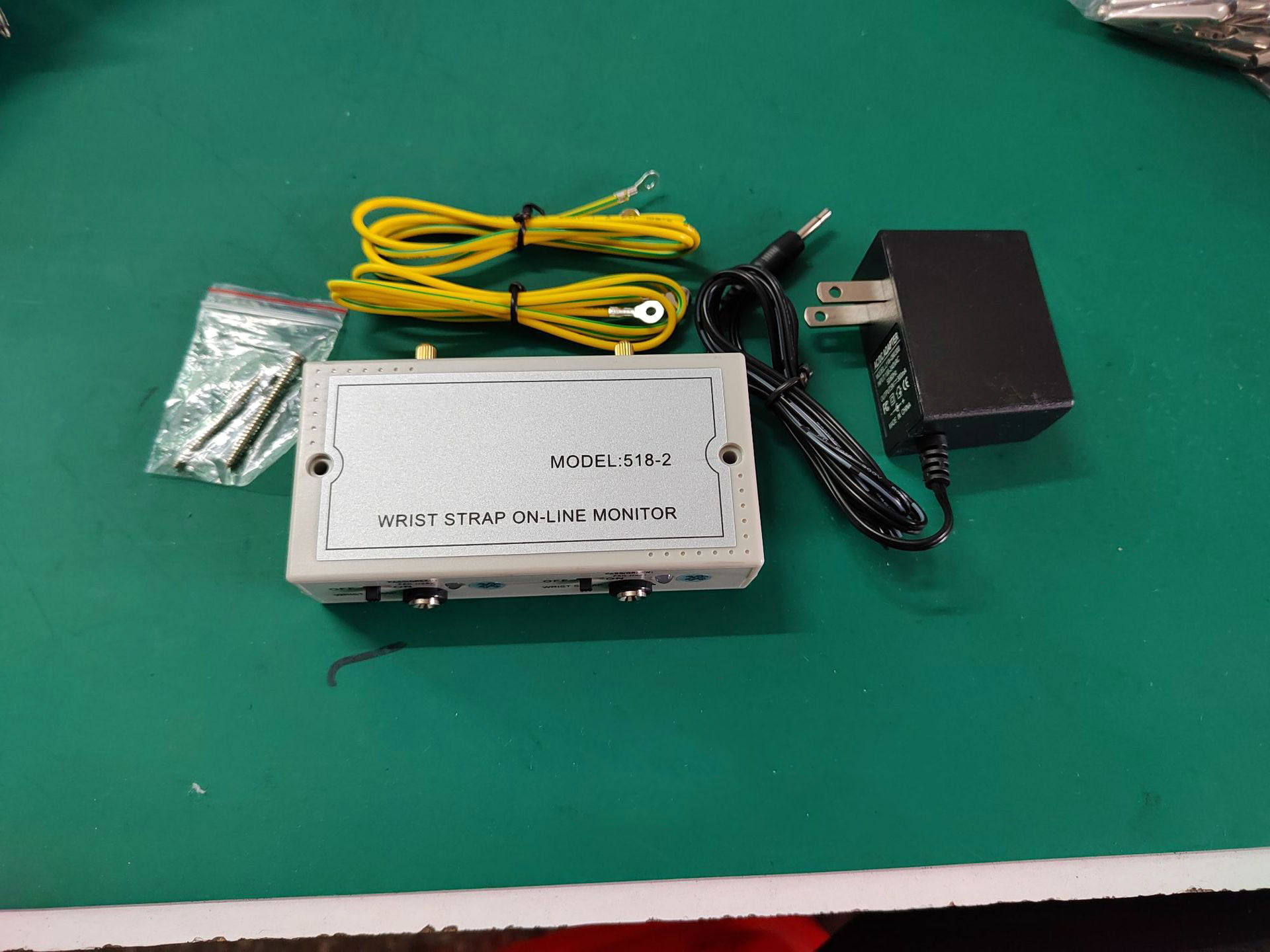

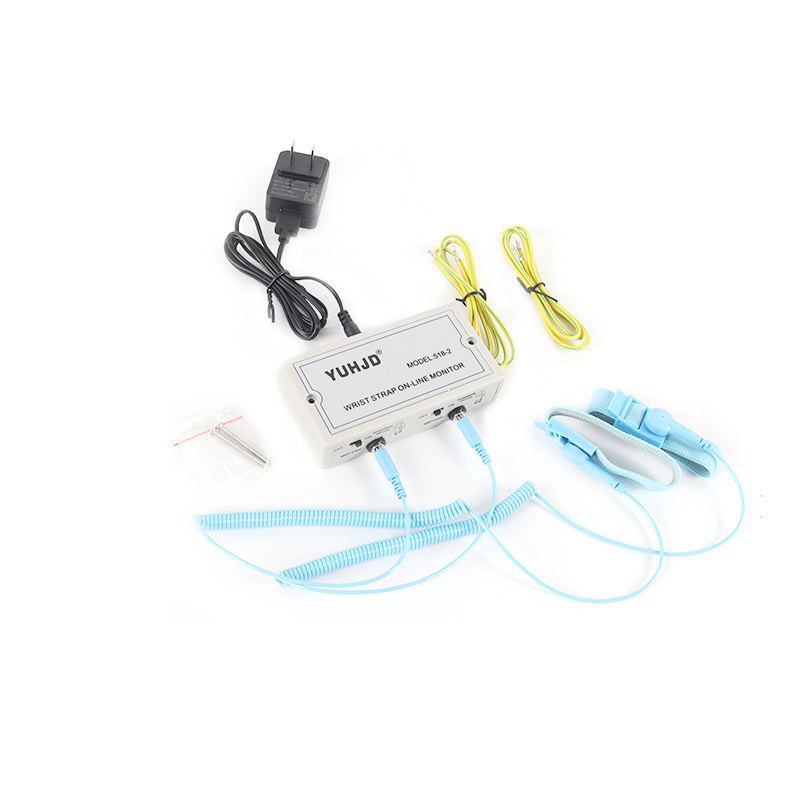

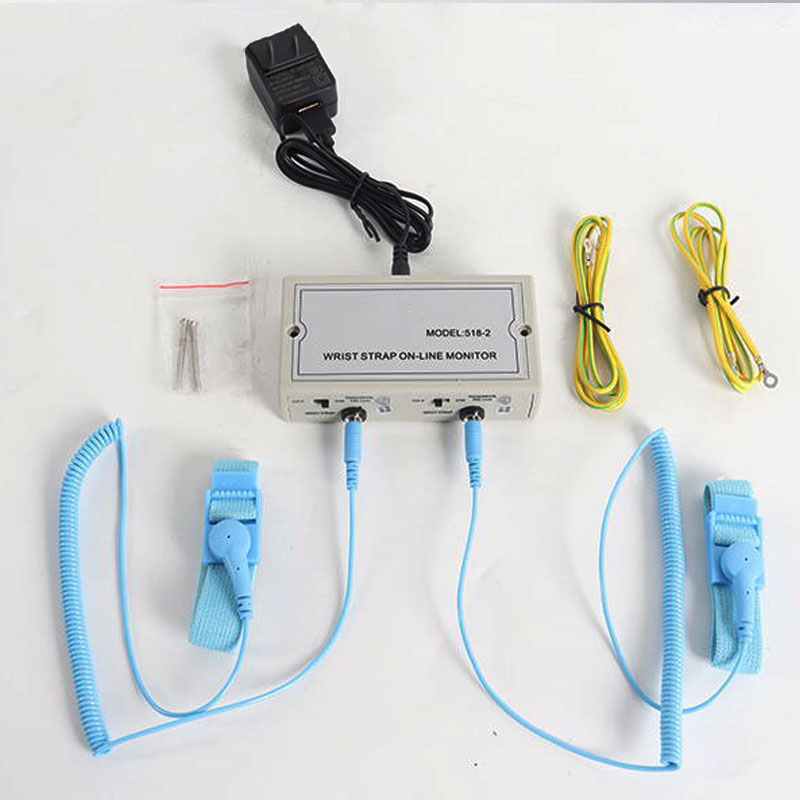

  Package included

  1 x AC transformer
  1 x grounding wire

  Due to this device is sensing the human body’s resistivity, and almost all people are different from each other, this device will suit all users. This device can be pre-set to suit most users too.

  ♦ If the body resistance is low, turn left to increase the resistiviity. When the lamp is lighted green, you are in the right position.

  ♦ If the body resistance is strong, turn right to reduce the resistivity. When the lamp is lighted green, you are in the right position.

• Wristband alarm real - time monitoring of the operator's wearing of electrostatic wrist strap and ground wire access to the ground, in case of abnormality the status automatically alerts immediately. Suitable for most of the anti-static wrist band.

• Esd wrist straps monitor microcomputer chip control, debugging - free, plug and play, easy to use and can correctly judge the contact between the ground wire on the ground and the ground wire on the workbench.

• Test parameters can be set as required, generally 1.068 - 2.0 mq ( plus or minus 5 % ), conforming to the specifications, or set monitoring parameters freely.

• The sensitivity is high, and the monitor will give an alarm when the electrostatic discharge path fails for 0.1 seconds or more. Good reliability and strong anti-interference ability.

• Anti static monitor use high precision electronic components and the America half original chips have high stability, with the safety certificate power source,through a number of certification.
