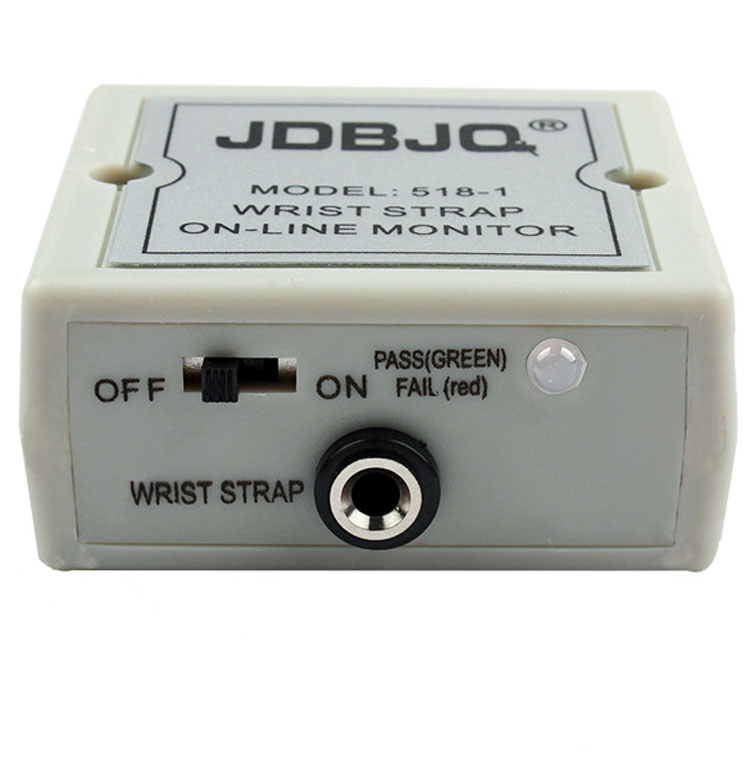

ESD Wriststrap Monitor

Product details

• Package Dimensions ‏ : ‎ 6.06 x 5.87 x 2.05 inches;

• Item model number ‏ : ‎ 518-1

Product Description

Feature

FEITA electrostatic wristband alarm can continuously monitor and control the antistatic wristband in real time and monitor the whole grounding system in real time.
Can to ensure the normal use of the grounding system in the anti-static work area.
This product ensures the operator's ESD status is obtained accurate monitoring.

Specification
Model:518-1
Output current: DC6V 0.3A
Power consumption: 1.8W
Accuracy: 1.068MΩ±5%
Product Size: 70 * 60 * 29mm (518-1); 110 * 60 * 29mm (518-2)

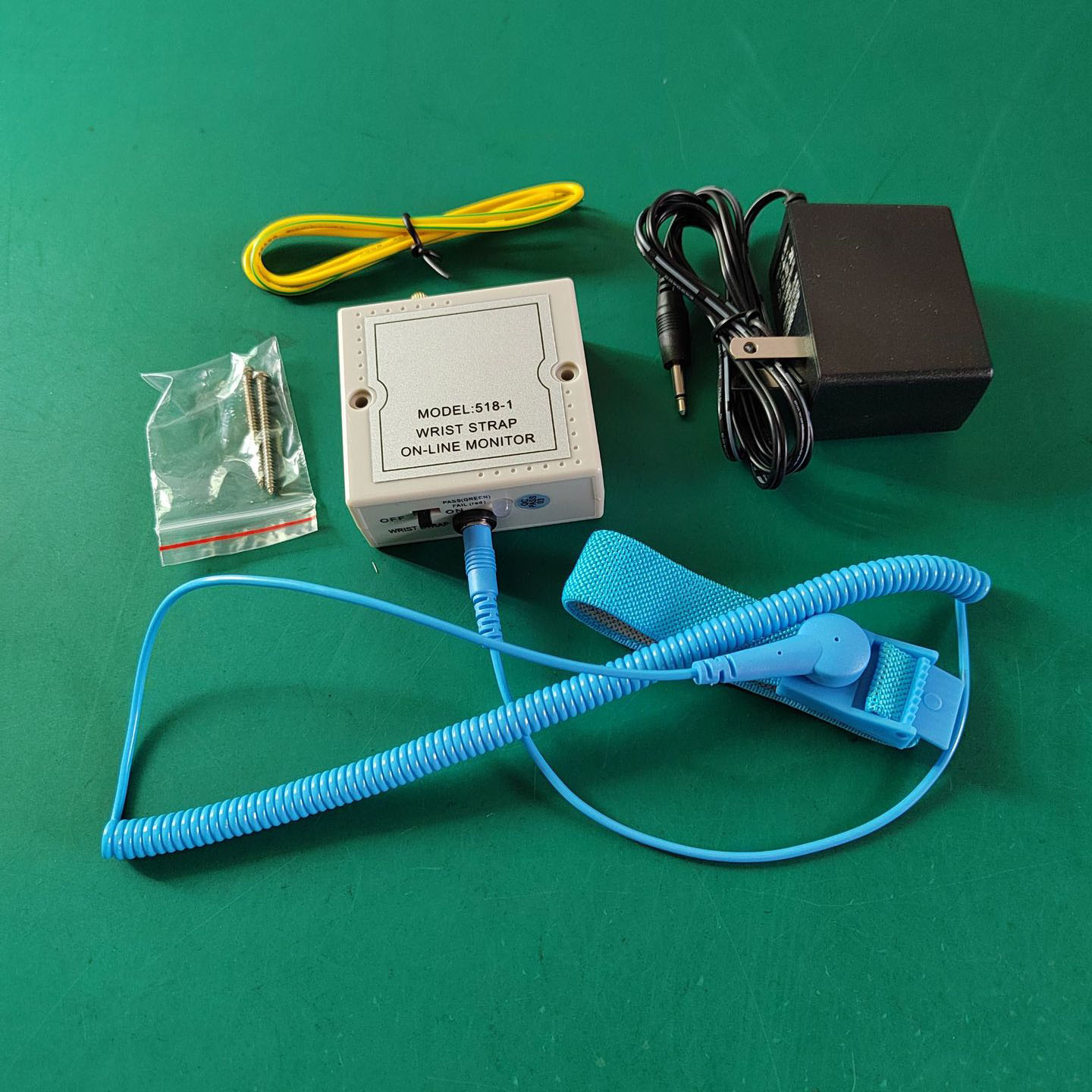

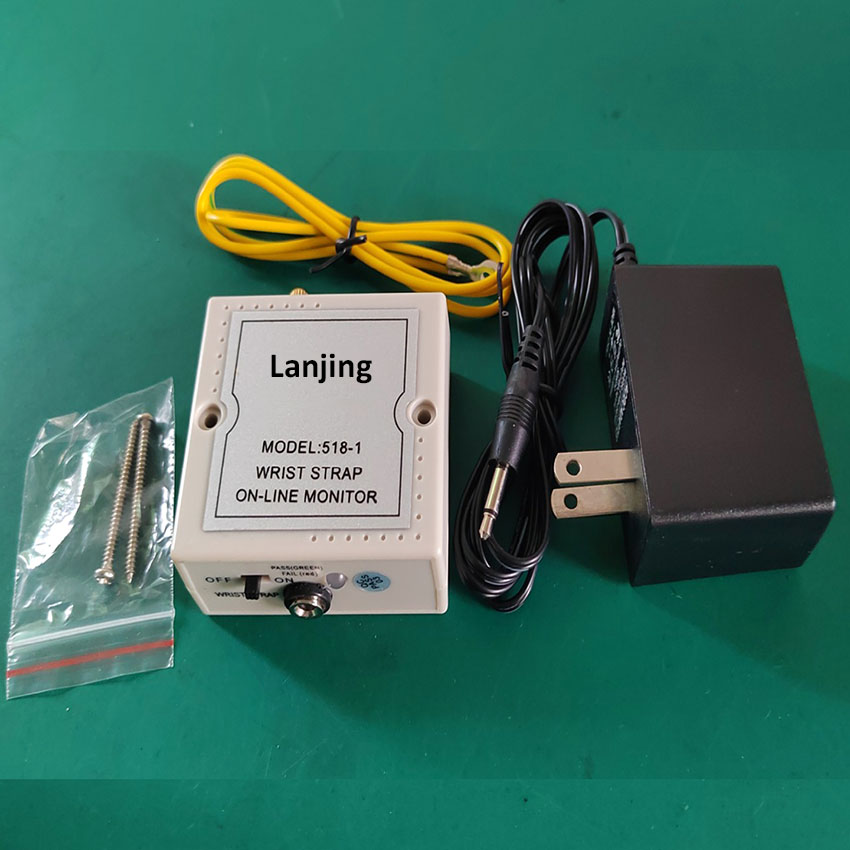

Package included

1 x AC transformer
1 x grounding wire

Due to this device is sensing the human body’s resistivity, and almost all people are different from each other, this device will suit all users. This device can be pre-set to suit most users too.

♦ If the body resistance is low, turn left to increase the resistiviity. When the lamp is lighted green, you are in the right position.

♦ If the body resistance is strong, turn right to reduce the resistivity. When the lamp is lighted green, you are in the right position.
